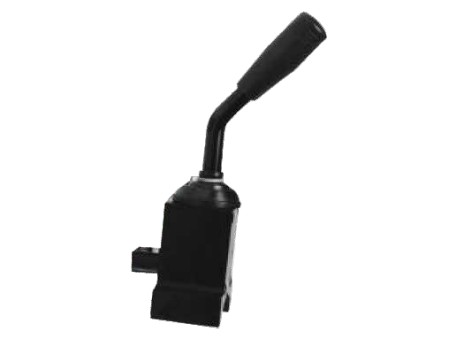

Forward-Neutral-Reverse (FNR) Switches
Precision Control for Electric Vehicles & Industrial Machinery
Experience superior reliability and seamless operation with our high-performance Forward-Neutral-Reverse (FNR) switches. Designed for modern electric vehicles and heavy-duty industrial equipment, these switches deliver smooth directional control while meeting the highest standards of safety and durability.
Engineered with intuitive functionality, they allow operators to effortlessly switch between forward, neutral, and reverse, ensuring precise handling in every application.
Key Features
✔ Engineered for rugged environments — Built to withstand demanding conditions
✔ IP67-rated sealing — Fully protected against dust, moisture, and harsh outdoor use
✔ Customizable options — Available with or without a horn button and with or without a neutral lock
✔ Effortless operation — Requires only 2.5 Nm torque to shift modes
✔ High-capacity sliding contacts — Supports solenoid loads of 3A @ 12.8V with arc suppression
✔ Self-cleaning contact technology — Provides consistent, long-term performance
✔ Flexible installation — Optional mounting clamp available, with or without locating pin
S/N | SHIFTERS | SPECIFICATIONS |
1 | Column size | 38mm, 45mm, 55mm |
2 | Neutral lock | None, drop-down |
3 | Mounting | Left, right |
4 | Buttons | Horn, wash or kick-down |
5 | Shifters | Connectors wire harness with a wide range of connectors |
6 | Speeds | 2,3,4/ Wiper speeds (Park, J,I,Il) Washer (Auto Return) |
7 | Vibration | up to 60 HZ |
8 | Lever | 3 Million (with drop-down neutral lock) 1 million (without drop-down neutral lock) cycles |
9 | Operating voltage range | 1V to 48V |
10 | Solenoid load | ЗА @ 12.8V with arc suppression |
11 | Handle dead weight limit | 750 Newtons |
12 | Expected life cycle | 500,000 cycles |
13 | Operating temperature | 20°C to 85°C |
